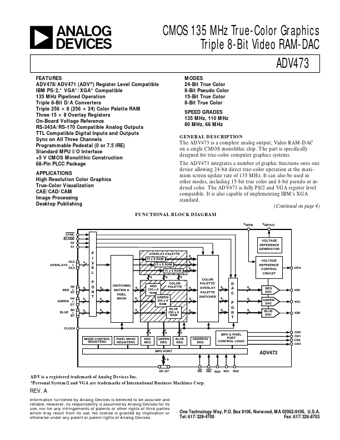

ADV473 - CMOS 135 MHz True-Color Graphics Triple 8-Bit Video RAM-DAC

General Description

The ADV473 is a complete analog output, Video RAM-DAC on a single CMOS monolithic chip.

The part is specifically designed for true-color computer graphics systems.

Key Features

  • ADV478/ADV471 (ADV®) Register Level Compatible IBM PS/2,.
  • VGA.
  • /XGA.
  • Compatible 135 MHz Pipelined Operation Triple 8-Bit D/A Converters Triple 256 ؋ 8 (256 ؋ 24) Color Palette RAM Three 15 ؋ 8 Overlay Registers On-Board Voltage Reference RS-343A/RS-170 Compatible Analog Outputs TTL Compatible Digital Inputs and Outputs Sync on All Three Channels Programmable Pedestal (0 or 7.5 IRE) Standard MPU l/O Interface +5 V CMOS Monolithic Construction 68-Pin PLCC Package.

📥 Download Datasheet

Datasheet Details

Part number ADV473
Manufacturer Analog Devices
File Size 200.93 KB
Description CMOS 135 MHz True-Color Graphics Triple 8-Bit Video RAM-DAC
Datasheet download datasheet ADV473 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ADV-700 DVD Surround Receiver Denon
ADV7525 Low Power HDMI/DVI Transmitter Analog Integrations Corporation
ADV809 3-pin microprocessor resets ADV
ADV810 3-pin microprocessor resets ADV
Advantest-R3264 Spectrum Analyzers Operation Manual Advantest

Other Datasheets by Analog Devices

Part Number Description
ADV471 CMOS 80 MHz Monolithic 256 x 24(18) Color Palette RAM-DACs
ADV475 Power-Down Color Palette RAM-DAC
ADV476 CMOS Monolithic 256x18 Color Palette RAM-DAC
ADV477 Power-Down Color Palette RAM-DAC
ADV478 CMOS 80 MHz Monolithic 256 x 24(18) Color Palette RAM-DACs

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
a FEATURES ADV478/ADV471 (ADV®) Register Level Compatible IBM PS/2,* VGA*/XGA* Compatible 135 MHz Pipelined Operation Triple 8-Bit D/A Converters Triple 256 ؋ 8 (256 ؋ 24) Color Palette RAM Three 15 ؋ 8 Overlay Registers On-Board Voltage Reference RS-343A/RS-170 Compatible Analog Outputs TTL Compatible Digital Inputs and Outputs Sync on All Three Channels Programmable Pedestal (0 or 7.
