ADV7343, ADV7342 - (ADV7342 / ADV7343) Multiformat Video Encoder

Name: ADV7343
SKU: ADV7343-564528

Analog Devices

The ADV7343 by Analog Devices is a (ADV7342 / ADV7343) Multiformat Video Encoder. Below is the official datasheet preview.

Datasheet Details

Part number	ADV7343, ADV7342
Manufacturer	Analog Devices
File Size	1.54 MB
Description	(ADV7342 / ADV7343) Multiformat Video Encoder
Datasheet	ADV7342_AnalogDevices.pdf
Note	This datasheet PDF includes multiple part numbers: ADV7343, ADV7342. Please refer to the document for exact specifications by model.

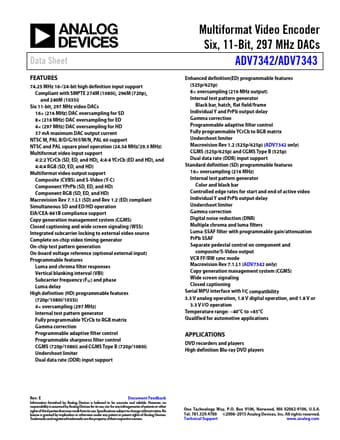

Additional preview pages of the ADV7343 datasheet.

74.25 MHz 16-/24-bit high definition input support Compliant with SMPTE 274M (1080i), 296M (720p), and 240M (1035i) Six 11-bit, 297 MHz video DACs 16× (216 MHz) DAC oversampling for SD 8× (216 MHz) DAC oversampling for ED 4× (297 MHz) DAC oversampling for HD 37 mA maximum DAC output current NTSC M, PAL B/D/G/H/I/M/N, PAL 60 support NTSC and PAL square pixel operation (24.54 MHz/29.5 MHz) Multiformat video input support 4:2:2 YCrCb (SD, ED, and HD), 4:4:4 YCrCb (ED and HD), and 4:4:4 RGB (SD, ED,.
