LT3010-5 - Low Dropout Micropower Linear Regulator

This page provides the datasheet information for the LT3010-5, a member of the LT3010 Low Dropout Micropower Linear Regulator family.

Datasheet Summary

Description

The LT®3010 is a high voltage, micropower low dropout linear regulator.

The device is capable of supplying 50mA output current with a dropout voltage of 300mV.

Features

  • n Wide Input Voltage Range: 3V to 80V n Low Quiescent Current: 30µA n Low Dropout Voltage: 300mV n Output Current: 50mA n Thermally Enhanced 8-Lead MSOP Package n No Protection Diodes Needed n Fixed Output Voltage: 5V (LT3010-5) n Adjustable Output from 1.275V to 60V (LT3010) n 1µA Quiescent Current in Shutdown n Stable with 1µF Output Capacitor n Stable with Aluminum, Tantalum or Ceramic Capacitors n Reverse-Battery Protection n No Reverse Current Flow from Output n Thermal Limiting n AEC-Q100.

📥 Download Datasheet

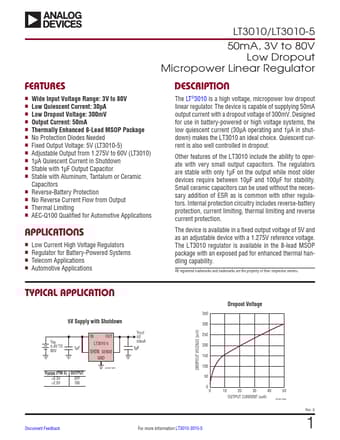

Datasheet preview – LT3010-5
