LT3966 - I2C Programmable Quad Monolithic Boost LED Driver

Description

The LT®3966 is an I2C programmable monolithic boost LED driver with four independent channels.

Features

  • n Four Independent DC/DC Channels n I2C Programmable n 8192:1 True Color PWM™ Dimming n 8-Bit Analog Dimming Pin Scaled by DAC n 11-Channel, 8-Bit ADC with 2 External Inputs n 1.6A, 60V Internal DMOS Switches n Input Voltage: 3V to 60V n Output Voltage and Current Monitoring to 60V n High Side PMOS Disconnect and PWM Switch Driver n Adjustable Frequency: 300kHz to 4MHz with Optional Frequency Synchronization n Thermally Enhanced 6mm × 6mm 40-Lead QFN Package n AEC-Q100 Qualification in Progress.

📥 Download Datasheet

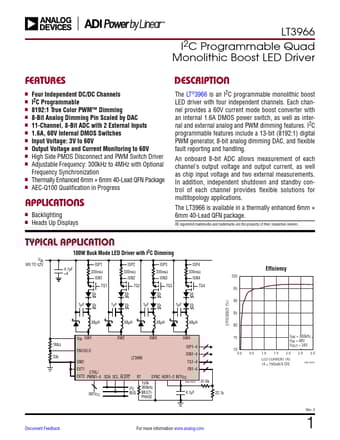

Datasheet preview – LT3966

Datasheet Details

Part number LT3966
Manufacturer Analog Devices
File Size 2.37 MB
Description I2C Programmable Quad Monolithic Boost LED Driver
Datasheet download datasheet LT3966 Datasheet
Additional preview pages of the LT3966 datasheet.

📁 Similar Datasheet

  • LT3965 - 8-Switch Matrix LED Dimmer (Linear Technology)
  • LT3905 - Boost DC/DC Converter (Linear Technology)
  • LT390AW - Ceramic Filter (LGE)
  • LT3922 - 2A Synchronous Step-Up LED Driver (Linear)
  • LT3932 - 2A Synchronous Step-Down LED Driver (Linear Technology)
  • LT3952 - 60V LED Driver (Linear)
  • LT3954 - 40V LED Converter (Linear Technology)
  • LT3955 - LED Converter (Linear)
  • LT3956 - Constant-Current and Constant-Voltage Converter (Linear Technology)
  • LT3957 - SEPIC and Inverting Converter (Linear Technology)
Other Datasheets by Analog Devices
  • LT3960 - I2C to CAN-Physical Transceiver
  • LT3964 - Dual 36V Synchronous 1.6A Buck LED Driver
  • LT3965-1 - 8-Switch Matrix LED Dimmer
  • LT3967 - 1.3A Eight-Switch Matrix LED Dimmer
  • LT3932-1 - 2A Synchronous Step-Down LED Driver
  • LT3950 - 1.5A LED Driver
  • LT3952A - 60V LED Driver
  • LT3970-3.42 - 350mA Step-Down Regulator

Full PDF Text Transcription

Click to expand full text
LT3966 I2C Programmable Quad Monolithic Boost LED Driver FEATURES n Four Independent DC/DC Channels n I2C Programmable n 8192:1 True Color PWM™ Dimming n 8-Bit Analog Dimming Pin Scaled by DAC n 11-Channel, 8-Bit ADC with 2 External Inputs n 1.6A, 60V Internal DMOS Switches n Input Voltage: 3V to 60V n Output Voltage and Current Monitoring to 60V n High Side PMOS Disconnect and PWM Switch Driver n Adjustable Frequency: 300kHz to 4MHz with Optional Frequency Synchronization n Thermally Enhanced 6mm × 6mm 40-Lead QFN Package n AEC-Q100 Qualification in Progress APPLICATIONS n Backlighting n Heads Up Displays DESCRIPTION The LT®3966 is an I2C programmable monolithic boost LED driver with four independent channels. Each channel provides a 60V current mode boost converter with an internal 1.
