LTC2066 Zero-Drift Operational Amplifier

📥 Download Datasheet Datasheet Preview Page 1

Description

LTC2066/LTC2067/LTC2068 10µA Supply Current, Low IB, Zero-Drift Operational Amplifier .
The LTC®2066/LTC2067/LTC2068 are single, dual, and quad low power, zero-drift, 100kHz amplifiers.

📥 Download Datasheet

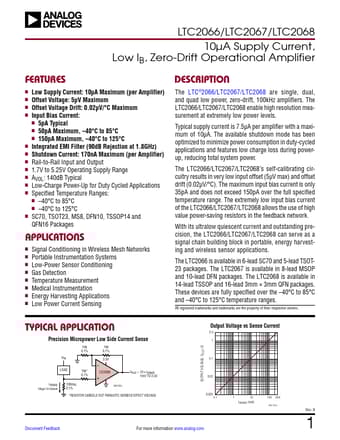

Preview of LTC2066 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* n Low Supply Current: 10μA Maximum (per Amplifier) n Offset Voltage: 5μV Maximum n Offset Voltage Drift: 0.02μV/°C Maximum n Input Bias Current: n 5pA Typical n 50pA Maximum,
* 40°C to 85°C n 150pA Maximum,
* 40°C to 125°C n Integrated EMI Filter (90dB Rejection at 1.8GHz) n Shutdown C

Applications

* n Specified Temperature Ranges: n
* 40°C to 85°C n
* 40°C to 125°C n SC70, TSOT23, MS8, DFN10, TSSOP14 and QFN16 Packages APPLICATIONS n Signal Conditioning in Wireless Mesh Networks n Portable Instrumentation Systems n Low-Power Sensor Conditioning n Gas Detection n Temperature Measur
