LTC2962 - Accurate Quad Configurable Supervisor

LTC2962 Description

LTC2962/LTC2963/LTC2964 ±0.5% Accurate Quad Configurable Supervisor .
The LTC®2962 series of configurable power supply monitors can supervise systems with up to four supply voltages.

LTC2962 Features

* nn Simultaneously Monitor Four Power Supplies nn ±0.5% Threshold Accuracy Over Temperature nn Selectable
* 4% and
* 6% Thresholds per Supply: 5V, 3.3V, 2.5V, 1.8V, 1.5V, 1.2V, 1V and ±ADJ nn Adjustable Reset (RST) Timeout nn Overvoltage and Negative Voltage Monitoring nn Push-Pull or O

📥 Download Datasheet

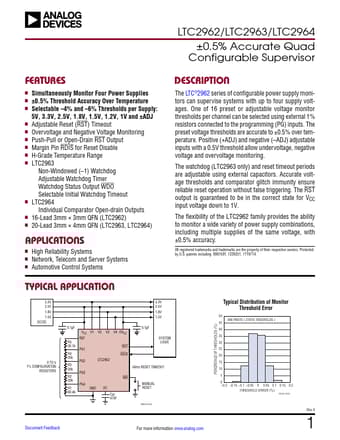

Preview of LTC2962 PDF
datasheet Preview Page 2 datasheet Preview Page 3
