LTC3108

Ultralow Voltage Step-Up Converter and Power Manager

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Analog Devices Inc LTC3108EGN-TRPBF IC DCDC CONV STP-UP LV 16SSOP DigiKey 2136 250 units
$4.43

LTC3108 Datasheet (627.74 KB)

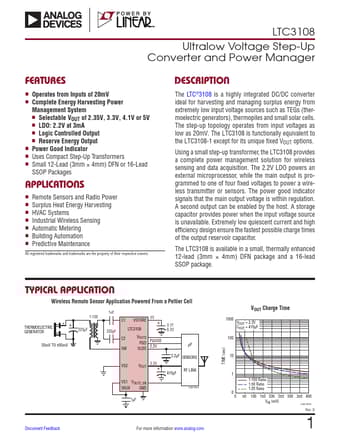

Preview of LTC3108 PDF Datasheet

Datasheet Details

Part number:

LTC3108

Manufacturer:

Analog Devices ↗

File Size:

627.74 KB

Description:

Ultralow voltage step-up converter and power manager

LTC3108 Features

* nn Operates from Inputs of 20mV nn Complete Energy Harvesting Power Management System nn Selectable VOUT of 2.35V, 3.3V, 4.1V or 5V nn LDO: 2.2V at 3mA nn Logic Controlled Output nn Reserve Energy Output nn Power Good Indicator nn Uses Compact Step-Up Transformers nn Small 12-Lead (3mm × 4mm) DFN or

LTC3108 General Description

The LTC®3108 is a highly integrated DC/DC converter ideal for harvesting and managing surplus energy from extremely low input voltage sources such as TEGs (thermoelectric generators), thermopiles and small solar cells. The step-up topology operates from input voltages as low as 20mV. The LTC3108 is .
