LTM2887 - SPI/Digital or I2C uModule Isolator

Product Overview

Analog Devices

Datasheet Details

Part number	LTM2887
Manufacturer	Analog Devices
File Size	562.54 KB
Description	SPI/Digital or I2C uModule Isolator
Datasheet	LTM2887 Datasheet

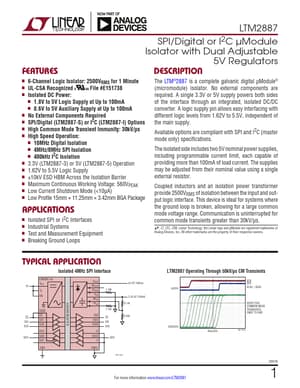

Additional preview pages of the LTM2887 datasheet.

Product details

Description

nn 6-Channel Logic Isolator: 2500VRMS for 1 Minute nn UL-CSA Recognized File #E151738 nn Isolated DC Power: nn 1.8V to 5V Logic Supply at Up to 100mA nn 0.6V to 5V Auxiliary Supply at Up to 100mA nn No External Components Required nn SPI/Digital (LTM2887-S) or I2C (LTM2887-I) Options nn High Common Mode Transient Immunity: 30kV/μs nn High Speed Operation: nn 10MHz Digital Isolation nn 4MHz/8MHz SPI Isolation nn 400kHz I2C Isolation nn 3.3V (LTM2887-3) or 5V (LTM2887-5) Operation n

Features

SPI/Digital or I2C µModule Isolator with Dual Adjustable 5V Regulators.
