MAX20011E

Automotive Single 8A Step-Down Converters

Analog Devices

MAX20011E Features

* include programmable softstart, overcurrent, and overtemperature protections. Applications

* Automotive ADAS Systems

* SoC Core Power Benefits and Features

* High Efficiency DC-DC Converter

* Up to 16A Peak Output Current

* MAX20011E: IMAX = 8A

* MAX20011F: IMAX = 12

MAX20011E General Description

The MAX20011E/MAX20011F/MAX20011G are high-efficiency, synchronous step-down converters that operate with a 3.0V to 5.5V input voltage range and supply a 0.5V to 1.275V output voltage range. The wide input/output voltage range and ability to provide up to 16A peak output current make these devices i.

MAX20011E Datasheet (1.08 MB)

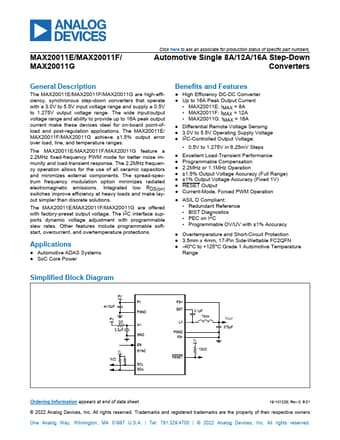

MAX20011E Datasheet Preview — Preview of MAX20011E PDF

Datasheet Details

Part number:

MAX20011E

Manufacturer:

Analog Devices ↗

File Size:

1.08 MB

Description:

Automotive single 8a step-down converters.
MAX20011E/MAX20011F/ MAX20011G Click here to ask an associate for production status of specific part numbers. Automotive Single 8A/12A/16A Step-Down .
