MAX9061, MAX9060 Datasheet - Analog Devices

MAX9061 nanoPower Single Comparators

The MAX9060 *MAX9064 are small single comparators, ideal for a wide variety of portable electronics applications such as cell phones, media players, and notebooks that have extremely tight board space and power constraints. These comparators are offered in both, a miniature 4-bump UCSP™ packa.

MAX9061 Features

* Tiny 1mm x 1mm x 0.6mm 4-Bump UCSP

* Footprint = Two 0402 Resistors

* Also Available in a 5-Pin SOT23 Package

* Ultra-Low Operating Current (100nA max)

* Input Voltage Range = -0.3V to +5.5V

* External REF Range = 0.9V to 5.5V (MAX9060/MAX9061)

* Internal REF Voltage =

MAX9060-AnalogDevices.pdf

This datasheet PDF includes multiple part numbers: MAX9061, MAX9060. Please refer to the document for exact specifications by model.

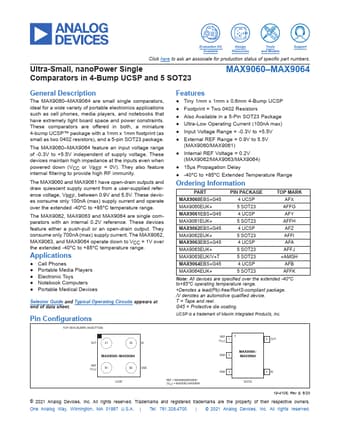

MAX9061 Datasheet Preview Page 2 MAX9061 Datasheet Preview Page 3

Datasheet Details

Part number:

MAX9061, MAX9060

Manufacturer:

Analog Devices ↗

File Size:

1.37 MB

Description:

Nanopower single comparators.

Note:

This datasheet PDF includes multiple part numbers: MAX9061, MAX9060.
Please refer to the document for exact specifications by model.
