MLT04 Datasheet, multiplier equivalent, Analog Devices

MLT04 Features

• Multiplier Four Independent Channels Voltage IN, Voltage OUT No External Parts Required 8 MHz Bandwidth Four-Quadrant Multiplication Voltage Output; W = (X × Y)/2.5 V 0.2% Typical Linearity Error

PDF File Details

Part number:

MLT04

Manufacturer:

Analog Devices ↗

File Size:

428.62kb

Download:

📄 Datasheet

Description:

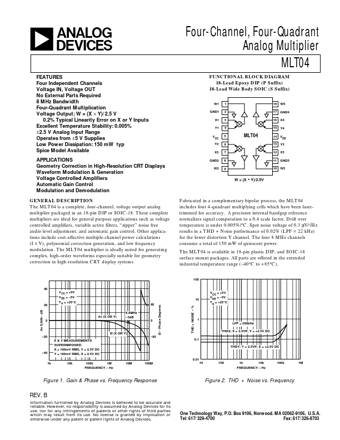

Four-channel / four-quadrant analog multiplier. The MLT04 is a complete, four-channel, voltage output analog multiplier packaged in an 18-pin DIP or SOIC-18. These complete multipli

MLT04 Application

• Applications Geometry Correction in High-Resolution CRT Displays Waveform Modulation & Generation Voltage Controlled Amplifiers Automatic Gain Contr
