OP11 Datasheet - Analog Devices

OP11 Quad Matched 741-Type Operational Amplifiers

The OP11 provides four matched 741-type operational amplifiers in a single 14-lead PDIP. The OP11 is pin compatible with the LM148, LM348, RM4156, RM4158, and HA4741 amplifiers. The amplifier is matched for common-mode rejection ratio and offset voltage, which is very important in designing instrume.

OP11 Features

* Guaranteed VOS: 500 μV maximum Guaranteed matched CMRR: 94 dB minimum Guaranteed matched VOS: 750 μV maximum LM148/LM348 direct replacement Low noise Silicon-nitride passivation Internal frequency compensation Low crossover distortion Continuous short-circuit protection Low input bias current GENERA

OP11_AnalogDevices.pdf

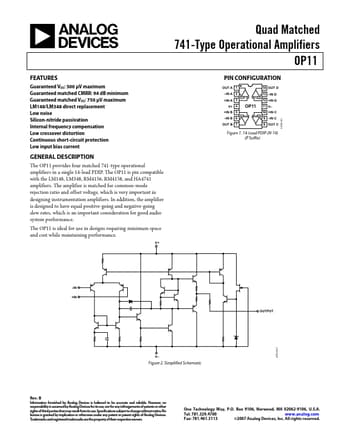

Preview of OP11 PDF
OP11 Datasheet Preview Page 2 OP11 Datasheet Preview Page 3

Datasheet Details

Part number:

OP11

Manufacturer:

Analog Devices ↗

File Size:

279.99 KB

Description:

Quad matched 741-type operational amplifiers.
