OP200 - Dual Low Offset / Low Power Operational Amplifier

Product Overview

Analog Devices

Datasheet Details

Part number	OP200
Manufacturer	Analog Devices
File Size	357.80 KB
Description	Dual Low Offset / Low Power Operational Amplifier
Datasheet	OP200 Datasheet

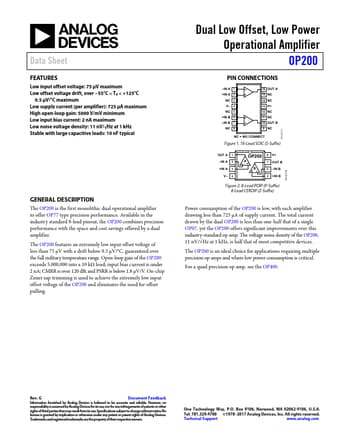

Additional preview pages of the OP200 datasheet.

Product details

Description

Dual Low Offset, Low Power Operational Amplifier OP200 PIN CONNECTIONS 16-Pin SOIC (S-Suffix) +IN A 2 NC 3 V 4 NC 5 +IN B 6 The OP200 is the first monolithic dual operational amplifier to offer OP77 type precision performance.Available in the industry standard 8-pin pinout, the OP200 combines precision performance with the space and cost savings offered by a dual amplifier.The OP200

Features

Low Input Offset Voltage: 75 ␮V Max Low Offset Voltage Drift, Over.
55 ؇ C < TA < +125 ؇C: 0.5 ␮V/؇ C Max Low Supply Current (Per Amplifier): 725 m A Max High Open-Loop Gain: 5000 V/mV Min Low Input Bias Current: 2 nA Max Low Noise Voltage Density: 11 nV/ ÷Hz at 1 kHz Stable with Large Capacitive Loads: 10 nF Typ Pin Compatible to OP221, MC1458, and LT1013 with Improved Performance Available in Die Form.
