OP37GS, OP37 Datasheet - Analog Devices

OP37GS Low Noise / Precision / High Speed Operational Amplifier

Low Noise, Precision, High Speed Operational Amplifier (A VCL > 5) OP37 The output stage has good load driving capability. A guaranteed swing of 10 V into 600 Ω and low output distortion make the OP37 an excellent choice for professional audio applications. PSRR and CMRR exceed 120 dB. These charac.

OP37GS Features

* Low Noise, 80 nV p-p (0.1 Hz to 10 Hz) 3 nV/√ Hz @ 1 kHz Low Drift, 0.2 ␮ V/؇ C High Speed, 17 V/␮ s Slew Rate 63 MHz Gain Bandwidth Low Input Offset Voltage, 10 ␮ V Excellent CMRR, 126 dB (Common-Voltage @ 11 V) High Open-Loop Gain, 1.8 Million Replaces 725, OP-07, SE5534 In Gains > 5 Available in

OP37_AnalogDevices.pdf

This datasheet PDF includes multiple part numbers: OP37GS, OP37. Please refer to the document for exact specifications by model.

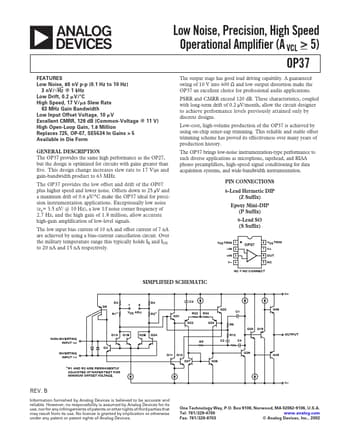

OP37GS Datasheet Preview Page 2 OP37GS Datasheet Preview Page 3

Datasheet Details

Part number:

OP37GS, OP37

Manufacturer:

Analog Devices ↗

File Size:

546.88 KB

Description:

Low noise / precision / high speed operational amplifier.

Note:

This datasheet PDF includes multiple part numbers: OP37GS, OP37.
Please refer to the document for exact specifications by model.
