SSM2120 - (SSM2120 / SSM2122) Dynamic Range Processors/Dual VCA

This page provides the datasheet information for the SSM2120, a member of the SSM2122 (SSM2120 / SSM2122) Dynamic Range Processors/Dual VCA family.

Datasheet Summary

Description

V

The SSM2120 is a monolithic integrated circuit designed for the purpose of processing dynamic signals in various analog systems including audio.

This “dynamic range processor” consists of two VCAs and two level detectors (the SSM2122 consists of two VCAs only).

Features

  • 0.01% THD at +10 dBV In/Out 100 dB VCA Dynamic Range Low VCA Control Feedthrough 100 dB Level Detection Range Log/Antilog Control Paths Low External Component Count.

📥 Download Datasheet

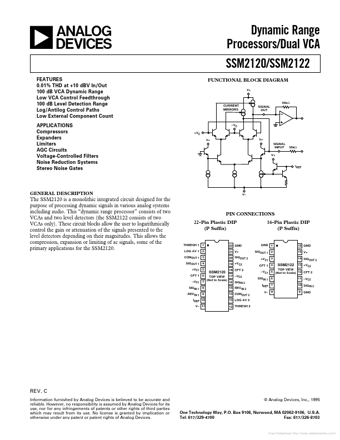

Datasheet preview – SSM2120

Datasheet Details

Part number SSM2120
Manufacturer Analog Devices
File Size 348.34 KB
Description (SSM2120 / SSM2122) Dynamic Range Processors/Dual VCA
Datasheet download datasheet SSM2120 Datasheet
