AIC1896

1.4MHz SOT23 Current-Mode Step-Up DC/DC Converter

AIC1896 Features

* Fixed Frequency 1.4MHz Current-Mode PWM Operation. Adjustable Output Voltage up to 30V. Guaranteed 13V/ 200mA Output with 5V Input. 2.5V to 10V Input Range. Maximum 0.1µA Shutdown Current. Programmable Soft-Start. Tiny Inductor and Capacitors are allowed. Space-Saving SOT-23-6 Package. APPLICATIONS

AIC1896 General Description

AIC1896 is a current-mode pulse-width modulation (PWM), step-up DC/DC Converter. The built-in high voltage N-channel MOSFET allows AIC1896 for step-up applications with up to 30V output voltage, as well as for Single Ended Primary Inductance Converter (SEPIC) and other low-side switching DC/DC conve.

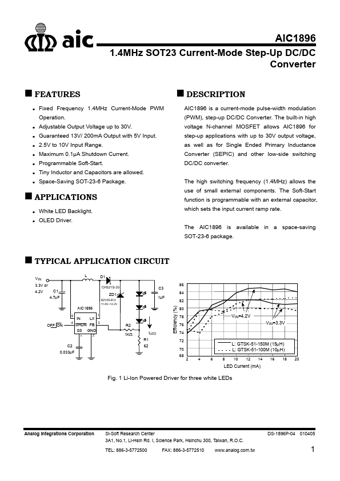

AIC1896 Datasheet (596.78 KB)

Preview of AIC1896 PDF

Datasheet Details

Part number:

AIC1896

Manufacturer:

Analog Intergrations Corporation

File Size:

596.78 KB

Description:

1.4mhz sot23 current-mode step-up dc/dc converter.
