AME8812, AME8801 - 300mA CMOS LDO

Analog Microelectronics

The AME8812 by Analog Microelectronics is a 300mA CMOS LDO. Below is the official datasheet preview.

📥 Download Datasheet

AME8812 300mA CMOS LDO by Analog Microelectronics - Datasheet Preview — Official preview page of the **AME8812** 300mA CMOS LDO datasheet (Analog Microelectronics).

Datasheet Details

Part number	AME8812, AME8801
Manufacturer	Analog Microelectronics
File Size	234.85 KB
Description	300mA CMOS LDO
Datasheet	AME8801-AnalogMicroelectronics.pdf
Note	This datasheet PDF includes multiple part numbers: AME8812, AME8801. Please refer to the document for exact specifications by model.

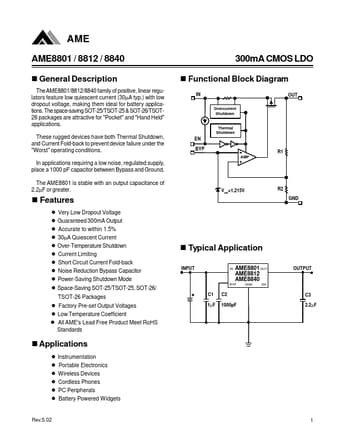

Additional preview pages of the AME8812 datasheet.

AME8812 Product details

Description

The AME8801/8812/8840 family of positive, linear regulators feature low quiescent current (30µA typ.) with low dropout voltage, making them ideal for battery applications.

Features

l Very Low Dropout Voltage l Guaranteed 300mA Output l Accurate to within 1.5% l 30µA Quiescent Current l Over-Temperature Shutdown l Current Limiting l Short Circuit Current Fold-back l Noise Reduction Bypass Capacitor l Power-Saving Shutdown Mode l Space-Saving SOT-25/TSOT-25, SOT-26/ TSOT-26 Packages l Factory Pre-set Output Volt.
