AME9172M

Bus Termination Regulator

AME9172M Features

* l Support All DDR2 (0.9VTT) DDR3(0.75VTT) and DDR3L (0.675) Requirements l Capable of Sourcing and Sinking 2A Current l Current-limiting Protection l Thermal Protection l Integrated Power MOSFETs l Generates Termination Voltages for SSTL-2 l High Accuracy Output Voltage at Full-Load l Adjustable VOU

AME9172M General Description

The AME9172M is a voltage regulator which could convert the input voltage ranging from 1.2V to 3.0V to an output voltage that user settled. The regulator can provide 2A sourcing or sinking current. The AME9172M used in conjunction with series termination resistors, provides an excellent voltage sour.

AME9172M Datasheet (110.88 KB)

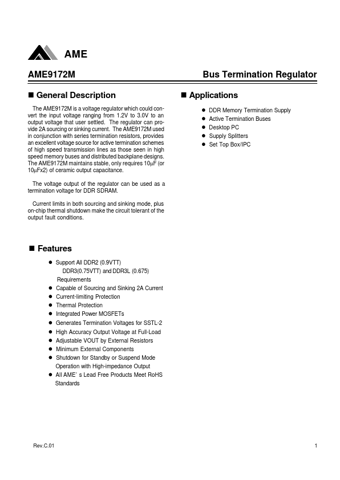

Preview of AME9172M PDF

Datasheet Details

Part number:

AME9172M

Manufacturer:

Analog Microelectronics

File Size:

110.88 KB

Description:

Bus termination regulator.
