AM7332N

N-Channel MOSFET

AM7332N Features

* Low rDS(on) trench technology

* Low thermal impedance

* Fast switching speed Typical Applications:

* DC/DC Conversion

* Power Routing

* Motor Drives AM7332N VDS (V) 30 PRODUCT SUMMARY rDS(on) (mΩ) 13 @ VGS = 10V 18 @ VGS = 4.5V ID (A) 33 28 DFN

AM7332N Datasheet (590.58 KB)

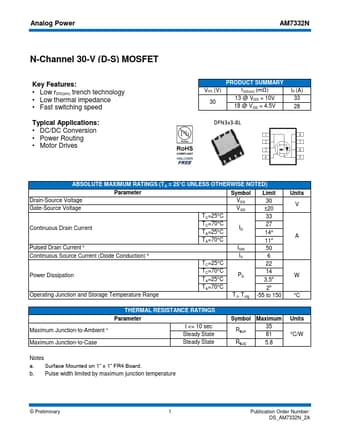

Preview of AM7332N PDF

Datasheet Details

Part number:

AM7332N

Manufacturer:

Analog Power

File Size:

590.58 KB

Description:

N-channel mosfet.
