AM90N02-04D - N-Channel MOSFET

📥 Download Datasheet

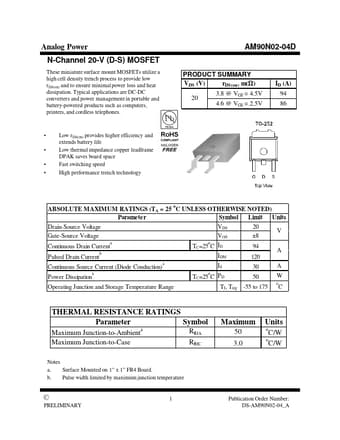

Datasheet preview – AM90N02-04D

Datasheet Details

Part number AM90N02-04D
Manufacturer Analog Power
File Size 63.11 KB
Description N-Channel MOSFET
Datasheet download datasheet AM90N02-04D Datasheet
Additional preview pages of the AM90N02-04D datasheet.

📁 Similar Datasheet

  • AM9016 - DRAM (AMD)
  • AM9044 - 4096 x 1 Static RAM (AMD)
  • AM9064 - DRAM (AMD)
  • AM9080A - 8-Bit Microprocessor (AMD)
  • AM90L44 - 4096 x 1 Static RAM (AMD)
  • AM9101 - 256 x 4 Static RAM (AMD)
  • AM9101 - 300mA CMOS (Xiang Shuo)
  • AM9108 - HIGH EFFICIENCY STEP-UP DC/DC CONVERTER (Xiang Shuo)
  • AM9109 - HIGH EFFICIENCY STEP-UP DC/DC CONVERTER (Xiang Shuo)
  • AM9111 - 256 x 4-Static RAM (AMD)
Other Datasheets by Analog Power

Full PDF Text Transcription

Click to expand full text
Analog Power N-Channel 20-V (D-S) MOSFET These miniature surface mount MOSFETs utilize a high cell density trench process to provide low rDS(on) and to ensure minimal power loss and heat dissipation. Typical applications are DC-DC converters and power management in portable and battery-powered products such as computers, printers, and cordless telephones. • Low rDS(on) provides higher efficiency and extends battery life • Low thermal impedance copper leadframe DPAK saves board space • Fast switching speed • High performance trench technology AM90N02-04D PRODUCT SUMMARY VDS (V) rDS(on) m(Ω) 20 3.8 @ VGS = 4.5V 4.6 @ VGS = 2.
