SSM2120 Datasheet - Analog

SSM2120 - (SSM2122) Dynamic Range Processors/Dual VCA

V * The SSM2120 is a monolithic integrated circuit designed for the purpose of processing dynamic signals in various analog systems including audio.

This “dynamic range processor” consists of two VCAs and two level detectors (the SSM2122 consists of two VCAs only).

These circuit blocks allo

SSM2120 Features

* 0.01% THD at +10 dBV In/Out 100 dB VCA Dynamic Range Low VCA Control Feedthrough 100 dB Level Detection Range Log/Antilog Control Paths Low External Component Count APPLICATIONS Compressors Expanders Limiters AGC Circuits Voltage-Controlled Filters Noise Reduction Systems Stereo Noise Gates Dynamic

SSM2120_Analog.pdf

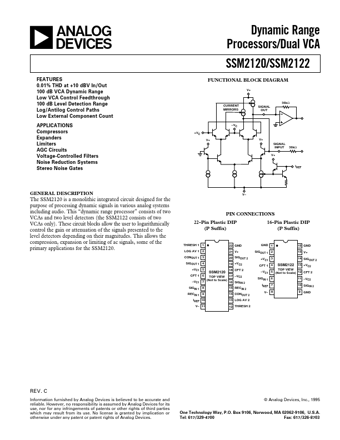

Preview of SSM2120 PDF
SSM2120 Datasheet Preview Page 2 SSM2120 Datasheet Preview Page 3

Datasheet Details

Part number:

SSM2120

Manufacturer:

Analog

File Size:

371.64 KB

Description:

(ssm2122) dynamic range processors/dual vca.
