AU6815P Datasheet - AnalogySemi

2x32W Digital Class D Audio Power Amplifier

AU6815P General Description

ADR/GPIO0 3 DI/O Different I2C device address can be set by selecting different pull-up resistor to DVDD. Or it can be used as GPIO0 and can be configured as FAULT. VR_DIG 4 GPIO1/NC 5 LRCLK 6 SCLK 7 SDIN 8 GPIO2 9 SDA 10 SCL 11 PDN 12 AVDD 13 P DI/O DI DI DI DO DI/O DI DI P.

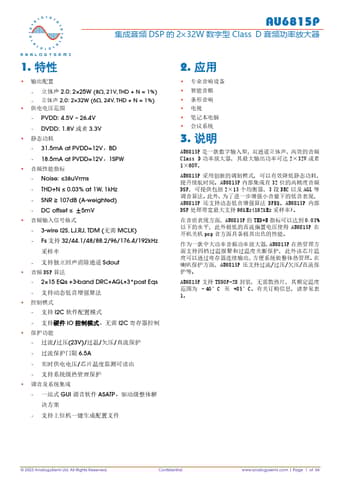

AU6815P Datasheet (1.94 MB)

AU6815P Datasheet Preview — Preview of AU6815P PDF

Datasheet Details

Part number:

AU6815P

Manufacturer:

AnalogySemi

File Size:

1.94 MB

Description:

2x32w digital class d audio power amplifier.
AU6815P DSP 2×32W Class D 1. - 2.0: 2×25W (8Ω, 21V, THD + N = 1%) - 2.0: 2×32W (6Ω, 24V, THD + N = 1%) - PVDD: 4.5V .
