IS801

Transformer Driver

IS801 Features

* Push-pull driver for small transformers

* Single 3.3V or 5V supply

* High primary-side current drive: 5V supply: 500mA (max) 3.3V supply: 500mA (max)

* Low ripple on rectified output permits small output capacitors

* VCC undervoltage detect

* Spread

IS801 General Description

The IS801 is a monolithic oscillator/power-driver, which is designed for small form factor, isolated power supplies in isolated interface applications. A low-profile, center-tapped transformer primary from a 3.3V or 5V DC power supply can be driven by IS801 while the secondary can be wound to provid.

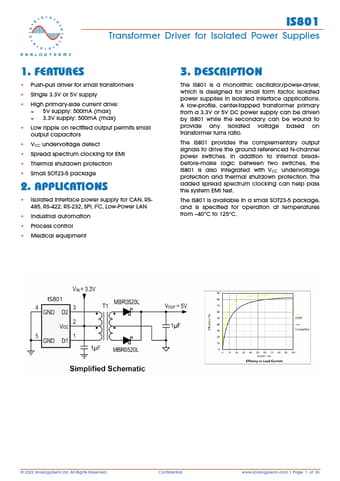

IS801 Datasheet (1.27 MB)

Preview of IS801 PDF

Datasheet Details

Part number:

IS801

Manufacturer:

AnalogySemi

File Size:

1.27 MB

Description:

Transformer driver.
