B0809J50ATI

Impedance Matched Ultra Low profile 0805 Balun

B0809J50ATI Features

* ROOM (25°C)

* 850

* 915 MHz Parameter Min. Typ. Max

* Matched to TI CC1100 & Frequency 850 915 CC1101 SoC Unbalanced Port Impedance

* 50

* 0.7mm Height Profile

* Low Insertion Loss Balanced Port Impedance

* Matched

* Surface Mountable Return Los

B0809J50ATI General Description

The B0809J50ATI is a low cost, low profile sub-miniature unbalanced to balanced transformer specifically designed for differential inputs and output locations Texas Instruments CC1100 and CC1101 SoC Solution in an easy to use surface mount package. The B0809J50ATI is ideal for high volume manufactur.

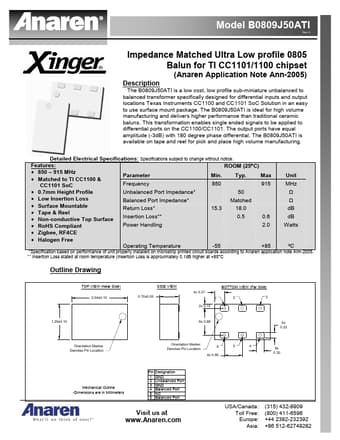

B0809J50ATI Datasheet (2.75 MB)

Preview of B0809J50ATI PDF

Datasheet Details

Part number:

B0809J50ATI

Manufacturer:

Anaren Microwave

File Size:

2.75 MB

Description:

Impedance matched ultra low profile 0805 balun.
