BD2040J50100AHF Datasheet - Anaren

PRELIMINARY Ultra Low Profile 0805 Balun

BD2040J50100AHF Features

* 2000

* 4000 MHz

* 0.7mm Height Profile

* 50 Ohm to 2 x 50 Ohm

* Multiple ISM bands

* Low Insertion Loss Parameter Frequency Unbalanced Port Impedance Balanced Port Impedance Return Loss Min. 2650 13.0 Typ. 50 100 16.9 Max 3500 Min. 2000 10

* Input to Output D

BD2040J50100AHF General Description

The BD2040J50100AHF is a low profile sub-miniature balanced to unbalanced transformer designed for differential inputs and output locations on next generation wireless chipsets in an easy to use surface mount package covering multiple ISM bands. The BD2040J50100AHF is ideal for high volume manufactu.

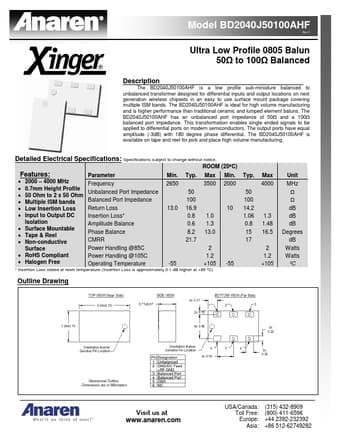

BD2040J50100AHF Datasheet (409.28 KB)

Preview of BD2040J50100AHF PDF

Datasheet Details

Part number:

BD2040J50100AHF

Manufacturer:

Anaren

File Size:

409.28 KB

Description:

Preliminary ultra low profile 0805 balun.
