AS1002

PWM Buck Converter

AS1002 Features

* Precision feedback reference voltage: 0.5V (2%) Wide supply voltage operating range: 3.0 to 20V Low current consumption: 5.5mA Internal fixed oscillator frequency: Typ. 350KHz Programmable Soft-Start function (SS) Short Circuit Shutdown and Auto Re-start function(ARSCP) Built-in P-MOSFET for 2A load

AS1002 General Description

The AS1002 is a buck topology of switching regulator for wide operating voltage applications field. The AS1002 includes a high current P-MOSFET, high precision reference (0.5V) for comparing output voltage with feedback amplifier, an internal dead-time control and oscillator for controlling the maxi.

AS1002 Datasheet (272.77 KB)

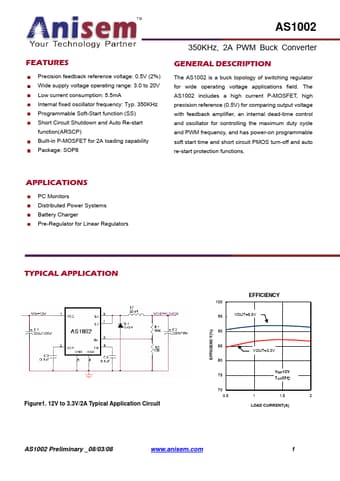

Preview of AS1002 PDF

Datasheet Details

Part number:

AS1002

Manufacturer:

Anisem

File Size:

272.77 KB

Description:

Pwm buck converter.
