APM9926AK - Dual N-Channel MOSFET

Product Overview

Anpec Electronics Coropration

Datasheet Details

Part number	APM9926AK
Manufacturer	Anpec Electronics Coropration
File Size	151.86 KB
Description	Dual N-Channel MOSFET
Datasheet	APM9926AK Datasheet

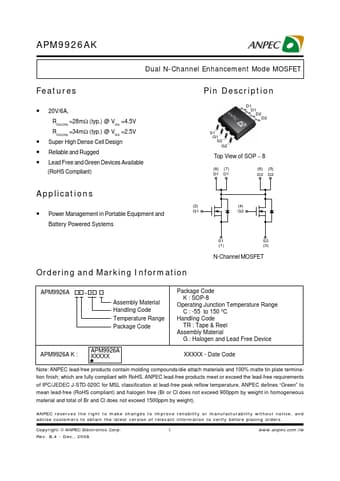

Additional preview pages of the APM9926AK datasheet.

Product details

Description

D1 D1 D2 D2 Super High Dense Cell Design www.DataSheet4U.com Reliable and Rugged Lead Free Available (RoHS Compliant) S1 G1 S2 G2 Top View of SOP 8 (8) D1 (7) D1 (6) D2 (5) D2 Applications Power Management in Notebook Computer, Portable Equipment and Battery Powered Systems (2) G1 (4) G2 S1 (1) S2 (3) N-Channel MOSFET Ordering and Marking Information APM9926A Lead Free Code Handling Code Tem p.Range Package Code Package Code K : SOP-8 O

Features

20V/6A, RDS(ON) =28mΩ(typ. ) @ VGS =4.5V RDS(ON) =34mΩ(typ. ) @ VGS =2.5V Pin.
