APW7004

Synchronous-Rectifier PWM Controller

APW7004 Features

* Simple Single-Loop Control Design-VoltageMode PWM Control Fast Transient Response

* High-Bandwidth Error Amplifier 5-Bit Digital-to-Analog Output Voltage Selection

* Wide Range from1.3VDC to 3.5VDC

* 0.1V Binary Steps from 2.1VDC to 3.5VDC .05V B

APW7004 General Description

The APW7004 provides a complete control and multiple protection for a DC-DC converter optimized for high performance microprocessor applications. It is designed to drive two N-Channel MOSFETs in a synchronous-rectified buck topology. The APW7004 integrates output voltage control, output voltage prog.

APW7004 Datasheet (100.09 KB)

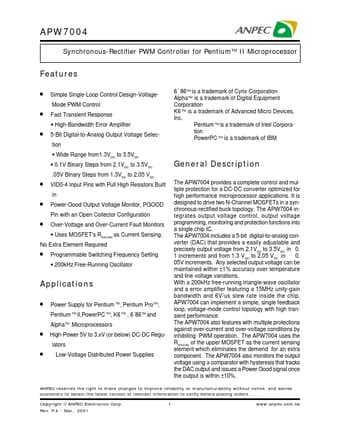

Preview of APW7004 PDF

Datasheet Details

Part number:

APW7004

Manufacturer:

Anpec Electronics Coropration

File Size:

100.09 KB

Description:

Synchronous-rectifier pwm controller.
