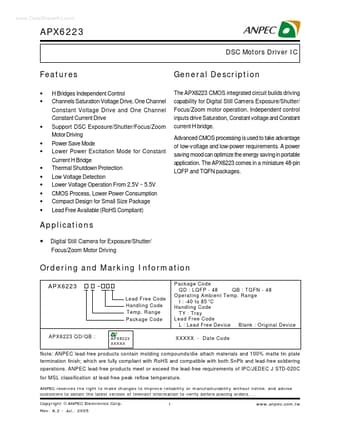

APX6223 datasheet, driver equivalent, Anpec Electronics

APX6223 Features and benefits

*
* H Bridges Independent Control Channels Saturation Voltage Drive, One Channel Constant Voltage Drive and One Channel Constant Current Drive Support DSC Exposur.

APX6223 Application

* Digital Still Camera for Exposure/Shutter/ Focus/Zoom Motor Driving Ordering and Marking Information APX6223 Lead.

APX6223 Description

The APX6223 CMOS integrated circuit builds driving capability for Digital Still Camera Exposure/Shutter/ Focus/Zoom motor operation. Independent control inputs drive Saturation, Constant voltage and Constant current H bridge. Advanced CMOS processing.

Image gallery
