AP6256A - 600mA Adjustable Voltage LDO

Product Overview

Datasheet Details

Part number	AP6256A
Manufacturer	Anwell Semiconductor
File Size	1.04 MB
Description	600mA Adjustable Voltage LDO
Datasheet	AP6256A Datasheet

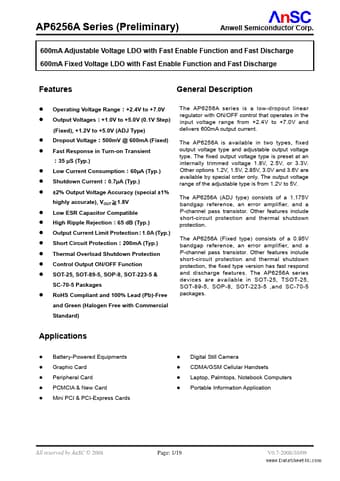

Additional preview pages of the AP6256A datasheet.

Product details

Description

The AP6256A series is a low-dropout linear regulator with ON/OFF control that operates in the input voltage range from +2.4V to +7.0V and delivers 600mA output current.

Features

z z z z z z z z z z z z z z z Operating Voltage Range：+2.4V to +7.0V Output Voltages：+1.0V to +5.0V (0.1V Step) (Fixed), +1.2V to +5.0V (ADJ Type) Dropout Voltage：500mV @ 600mA (Fixed) Fast Response in Turn-on Transient ：35 µS (Typ. ) Low Current Consumption：60µA (Typ. ) Shutdown Current：0.7µA (Typ. ) ±2% Output Voltage Accuracy (special ±1% highly accurate), VOUT≧1.8V Low ESR Capacitor Compatible High Ripple Rejection：65 dB (Typ. ) Output Current Limit Protection：1.0A (Typ. ) Short Circuit Protectio.
