AP9266 Datasheet - Anwell Semiconductor

AP9266 High Efficiency Low Start-up Voltage Step-up DC-DC Converter

z 1.0V Low Start-up Input Voltage at 1mA Load z Deliver 3.3V at 100mA with 1V Input Voltage z 35μA Quiescent (Switch-off) Supply Current z 90% High Efficiency (VIN 3.0V/VOUT 3.3V) z 550KHz Fixed Switching Frequency z 0.5μA Low Shutdown Current z Flexibility to Use 2A Internal NMOS and External Powe.

AP9266-AnwellSemiconductor.pdf

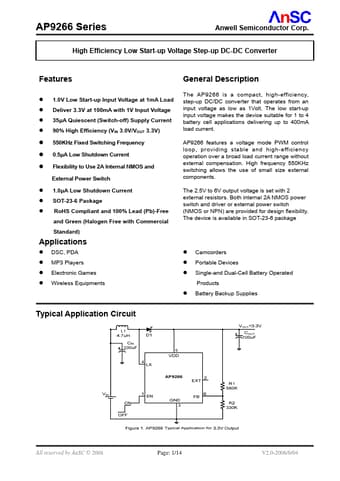

Preview of AP9266 PDF
AP9266 Datasheet Preview Page 2 AP9266 Datasheet Preview Page 3

Datasheet Details

Part number:

AP9266

Manufacturer:

Anwell Semiconductor

File Size:

842.32 KB

Description:

High efficiency low start-up voltage step-up dc-dc converter.
