ALC109 Datasheet - Apex MediTech

ALC109 ALARM SYSTEM

The ALC109 is a hybrid priority encoded audio alarm, available in low cost packages, based on a high performance architecture that executes instructions quickly. Many functions have been incorporated into the ALC109 in order to reduce component count, board space, and system cost. The audio quality .

ALC109 Features

* Two BCD inputs to select the priority Strobe to trigger the alarm Three priority encoded alarms, HIGH, MEDIUM, LOW and also a general purpose alarm. Inbuilt high performance audio power amplifier Drives 8Ω speaker directly. No other external components required Operates on single 5V supply Low stand

ALC109 Datasheet (257.32 KB)

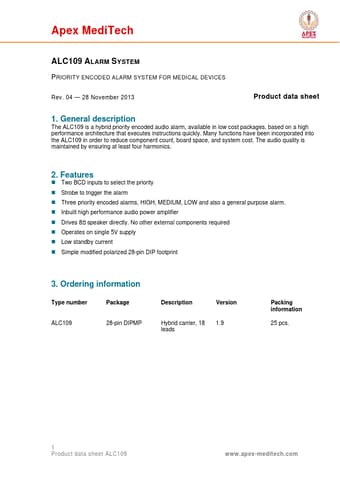

Preview of ALC109 PDF
ALC109 Datasheet Preview Page 2 ALC109 Datasheet Preview Page 3

Datasheet Details

Part number:

ALC109

Manufacturer:

Apex MediTech

File Size:

257.32 KB

Description:

Alarm system.
