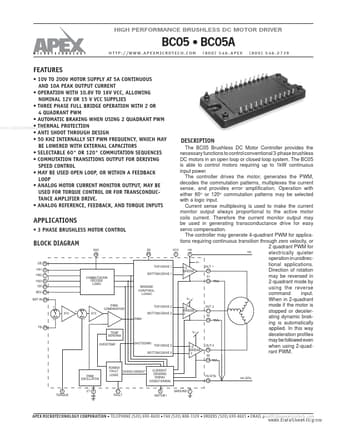

BC05A Datasheet Preview Page 1 — Preview of BC05A Datasheet

PDF File Details

Part number:

BC05A

Manufacturer:

Apex Microtechnology Corporation

File Size:

105.33 KB

Download:

📄 Download the BC05A Datasheet PDF

Description:

Motion control.

APPLICATIONS
PHASE BRUSHLESS MOTOR CONTROL

BLOCK DIAGRAM
SSC 18 OE 19 HSHSHS120 22 REV 21 REF IN 2.

✔ BC05A Features

10V TO 200V MOTOR SUPPLY AT 5A CONTINUOUS AND 10A PEAK OUTPUT CURRENT
OPERATION WITH 10.8V TO 16V VCC, ALLOWING NOMINAL 12V OR 15 V VCC SUPPLIES
THREE PHASE FULL BR

✔ BC05A Application

3 PHASE BRUSHLESS MOTOR CONTROL BLOCK DIAGRAM SSC 18 OE 19 HS1 6 HS2 7 HS3 8 120 22 REV 21 REF IN 23 + PW
