A2601 - 3D USB or PS2 Mouse Controller

A2601 Description

A2601 3D USB or PS2 Mouse Controller 1..
A2601ZDC is a 3D mouse controller especially designed for USB or PS/2 applications.

A2601 Features

* Complete USB specs V1.1 compatibility USB transceiver and controller integrated PS/2 mouse compatible Three buttons (R, M, L) and three axes (X, Y, Z) inputs Single chip solution for USB mouse function Fully support of Win2000, XP

A2601 Applications

* It is a low cost mouse solution. It can support the USB Standard Requirements as well as HID Class Requirements version 1.1. It is compatible with Microsoft/Intel 3D PS/2 mouse. The X/Y axis photo input with dynamic photo-input resistor and Z axis can support two kinds of scroll wheel input, namely

📥 Download Datasheet

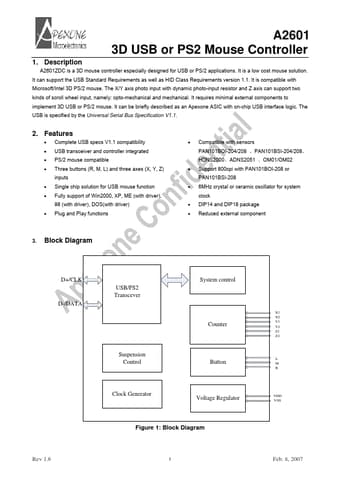

Preview of A2601 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
A2601
Manufacturer
Apexone
File Size
483.45 KB
Datasheet
A2601-Apexone.pdf
Description
3D USB or PS2 Mouse Controller
