® DEVICE SPECIFICATION MULTIRATE (OC-48/24/12/3/GBE/FC) SONET/SDH/ATM TRANSCEIVER w/ FEC BiCMOS LVPECL CLOCK GENERATOR MULTIRATE (OC-48/24/12/3/GBE/.
The S3067 SONET/SDH transceiver chip is a fully integrated multirate serialization/deserialization SONET OC-48, OC-24, OC-12 and OC-3 interface device.

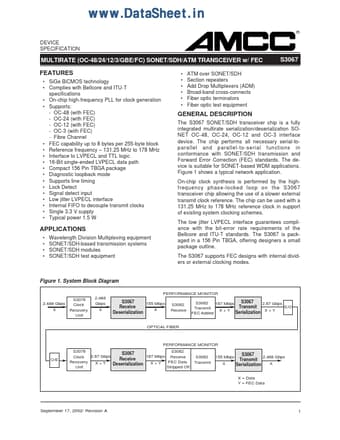

datasheet Preview Page 1 from Datasheet4u.com

S3067TB20_AppliedMicroCircuits.pdf

S3067 Datasheet Preview — This datasheet PDF includes multiple part numbers: S3067, S3067TB20. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

S3067, S3067TB20

Manufacturer:

Applied Micro Circuits

File Size:

257.62 KB

Description:

Multirate Sonet / SDH / ATM Transceiver w/FEC

Note:

This datasheet PDF includes multiple part numbers: S3067, S3067TB20.
Please refer to the document for exact specifications by model.

Features

* SiGe BiCMOS technology
* Complies with Bellcore and ITU-T specifications
* On-chip high-frequency PLL for clock generation
* Supports: - OC-48 (with FEC) - OC-24 (with FEC) - OC-12 (with FEC) - OC-3 (with FEC) - Fibre Channel
* FEC capability up to 8 bytes p

Applications

* Figure 1 shows a typical network application. On-chip clock synthesis is performed by the highfrequency phase-locked loop on the S3067 transceiver chip allowing the use of a slower external transmit clock reference. The chip can be used with a 131.25 MHz to 178 MHz reference clock in support of exi
