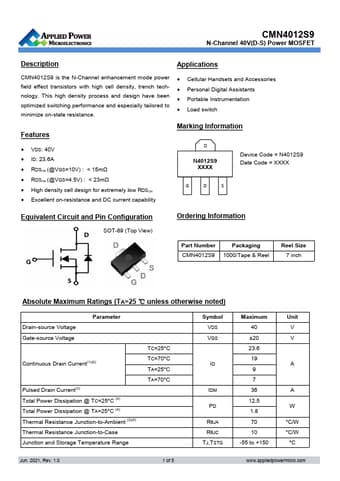

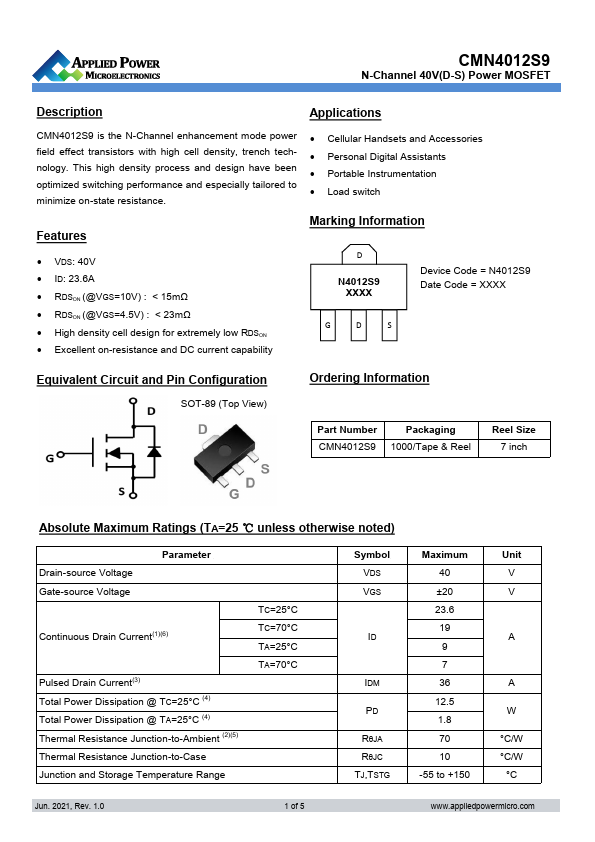

CMN4012S9 - N-Channel 40V Power MOSFET

CMN4012S9 Datasheet Preview — Preview of CMN4012S9 PDF

Datasheet Details

Part number	CMN4012S9
Manufacturer	Applied Power Microelectronics
File Size	1.23 MB
Description	N-Channel 40V Power MOSFET
Datasheet	CMN4012S9-AppliedPowerMicroelectronics.pdf

CMN4012S9 Product details

Description

Applications CMN4012S9 is the N-Channel enhancement mode power Cellular Handsets and Accessories field effect transistors with high cell density, trench tech- Personal Digital Assistants nology. Portable Instrumentation optimized switching performance and especially tailored to Load switch minimize on-state resistance.

Features

VDS: 40V.
ID: 23.6A.
RDSON (@VGS=10V) : < 15mΩ.
RDSON (@VGS=4.5V) : < 23mΩ.
High density cell design for extremely low RDSON.
Excellent on-resistance and DC current capability Marking Information D N4012S9 XXXX Device Code = N4012S9 Date Code = XXXX G D S Equivalent Circuit and Pin Configuration SOT-89 (Top View) Ordering Information Part Number Packaging CMN4012S9 1000/Tape & Reel Reel Size 7 inch Absolute Maximum Ratings (TA=25 ℃ unless otherwise not.
