APE1004 Datasheet - Apuls Intergrated Circuits

very low cost voice and melody synthesizer with 4-bits CPU

APE1004 Features

* including 4-bits ALU, ROM, RAM, I/O ports, timers, clock generator, voice and melody synthesizer, and PWM (Direct drive) output, etc. The audio synthesizer contains one voice-channel and two melody-channels. Furthermore, they consist of 27 instructions in these devices. With CMOS technology and halt

APE1004 Datasheet (293.89 KB)

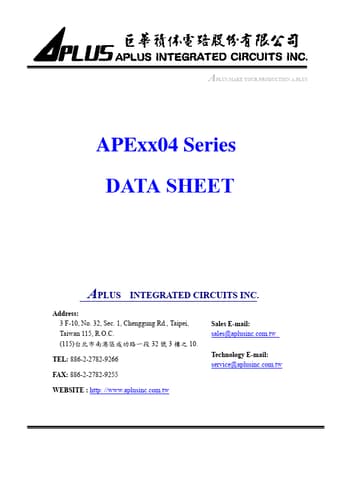

Preview of APE1004 PDF

Datasheet Details

Part number:

APE1004

Manufacturer:

Apuls Intergrated Circuits

File Size:

293.89 KB

Description:

Very low cost voice and melody synthesizer with 4-bits cpu.
A PLUS MAKE YOUR PRODUCTION A-PLUS APExx04 Series DATA SHEET APLUS INTEGRATED CIRCUITS INC. Sales E-mail: sales@aplusinc.com.tw Technology E-mail:.
