AVH316C - single-chip synthesizing CMOS VLSI

Apuls Intergrated Circuits

📥 Download Datasheet

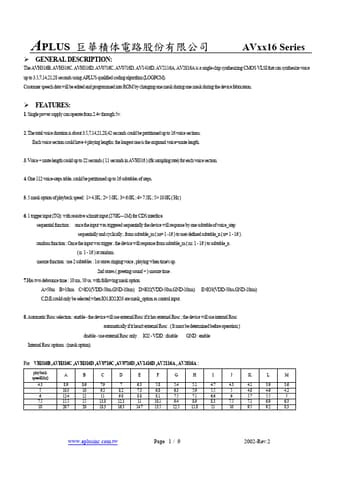

AVH316C Datasheet Preview — Preview of AVH316C PDF

Datasheet Details

Part number: AVH316C
Manufacturer: Apuls Intergrated Circuits
File Size: 249.89 KB
Datasheet: AVH316C_ApulsIntergratedCircuits.pdf
Description: single-chip synthesizing CMOS VLSI

AVH316C Product details

Description

The AVH316B, AVH316C, AVH316D, AV0716C, AV0716D, AV1416D, AV2116A, AV2816A is a single-chip synthesizing CMOS VLSI that can synthesize voice up to 3.5,7,14,21,28 seconds using APLUS qualified coding algorithm (LOGPCM).

Features

1. Single power supply can operate from 2.4v through 5v. 2. The total voice duration is about 3.5,7,14,21,28,42 seconds could be partitioned up to 16 voice sections. Each voice section could have 4 playing lengths; the longest one is the origional voice+mute length. 3. Voice + mute length could up to 22 seconds ( 11 seconds in AVH316 ) (6k sampling rate) for each voice section. 4. One 112 voice-steps table, could be partitioned up to 16 subtables of steps. 5. 5 mask option of playback speed.
