LPD10 Datasheet - Artesyn Technologies

LPD10 output 10 Watt Wide input DC/DC converters

LPD10 SERIES Single, dual and triple output 4:1 wide input voltage range 16 models available including 3.3V outputs Input reflected ripple according to CEPT Continuous short circuit protection EN55022 conducted emissions level B Designed to meet EN60950 and IEC950 The LPD10 series of DC/DC converters offer 10 Watts output power in a 2 x 2 inch package. 3.3V single outputs are available along with standard single, dual and triple output.

LPD10_ArtesynTechnologies.pdf

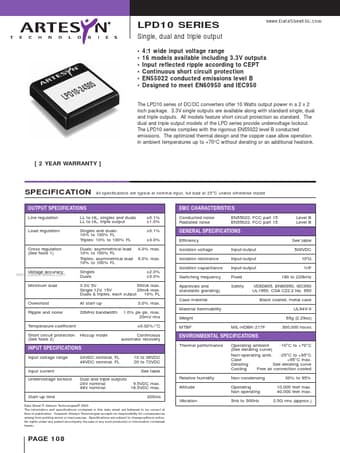

Preview of LPD10 PDF
LPD10 Datasheet Preview Page 2

Datasheet Details

Part number:

LPD10

Manufacturer:

Artesyn Technologies

File Size:

71.61 KB

Description:

Output 10 watt wide input dc/dc converters.
