AK4125 - 192kHz / 24Bit High Performance Asynchronous SRC

Product Overview

Asahi Kasei Microsystems

📥 Download Datasheet

AK4125 192kHz / 24Bit High Performance Asynchronous SRC by Asahi Kasei Microsystems - Datasheet Preview — Datasheet preview – AK4125

Datasheet Details

Part number	AK4125
Manufacturer	Asahi Kasei Microsystems
File Size	440.50 KB
Description	192kHz / 24Bit High Performance Asynchronous SRC
Datasheet	AK4125 Datasheet

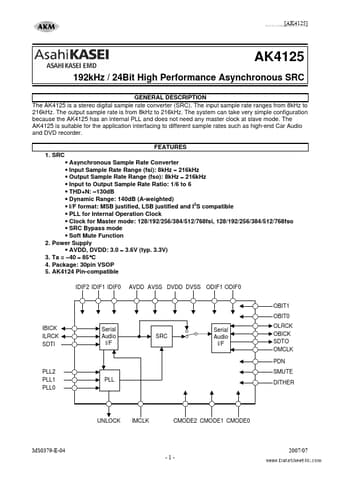

Additional preview pages of the AK4125 datasheet.

Product details

Description

The AK4125 is a stereo digital sample rate converter (SRC).

Features

1. SRC.
Asynchronous Sample Rate Converter.
Input Sample Rate Range (fsi): 8kHz ∼ 216kHz.
Output Sample Rate Range (fso): 8kHz ∼ 216kHz.
Input to Output Sample Rate Ratio: 1/6 to 6.
THD+N:.
130dB.
Dynamic Range: 140dB (A-weighted).
I/F format: MSB justified, LSB justified and I2S compatible.
PLL for Internal Operation Clock.
Clock for Master mode: 128/192/256/384/512/768fsi, 128/192/256/384/512/768fso.
