AK4364 Datasheet - Asahi Kasei Microsystems

96kHz 24-BIT DAC

AK4364 Features

* o Stereo ∆Σ DAC o S/(N+D): 90dB@5V o DR: 102dB@5V o S/N: 102dB@5V o Multiple Sampling Frequencies: 16kHz, 22.05kHz, 24kHz (Half speed) 32kHz, 44.1kHz, 48kHz (Normal speed) 64kHz, 88.2kHz, 96kHz (Double speed) o On-Chip Low Jitter Analog PLL: Multiple Master Clock Frequencies generated fr

AK4364 General Description

The AK4364 is a stereo CMOS D/A Converter and Phase Locked Loop for use in digital video broadcast set-top box applications or DVD. The DAC signal outputs are single-ended and are analog filtered to remove out of band noise. Therefore no external filters are required. The PLL provides selectable sam.

AK4364 Datasheet (261.87 KB)

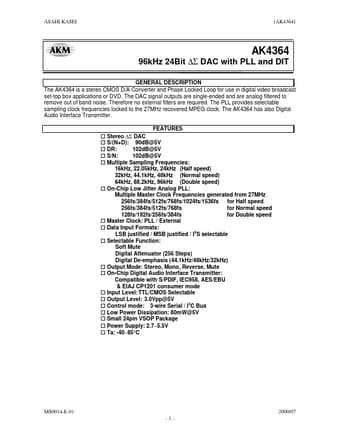

AK4364 Datasheet Preview — Preview of AK4364 PDF

Datasheet Details

Part number:

AK4364

Manufacturer:

Asahi Kasei Microsystems

File Size:

261.87 KB

Description:

96khz 24-bit dac.
