A-32-LC-xx Datasheet - Assmann Electronics

A-32-LC-xx IC Sockets

IC-SOCKETS IC-Fassungen, Low cost-Version, Raster 2.54mm IC-sockets, low cost version, pitch 2.54mm Isolierkörper Polyester, glasfaserverstärkt, UL 94V-0 Kontakte Phosphorbronze, verzinnt Betriebstemperatur -55°C bis + 105°C Strombelastbarkeit 1A Durchschlagspannung 1000V AC (1min) Insulator Polyester, glass reinforced UL 94V-0 Contacts Phosphor bronze, tin plated Operating temperature -55°C to +105°C Current rating 1A Withstanding voltage 1000V AC (1min) No. of Contacts 06 08 14 16 18 20 22 22.

A-32-LC-xx Datasheet (84.35 KB)

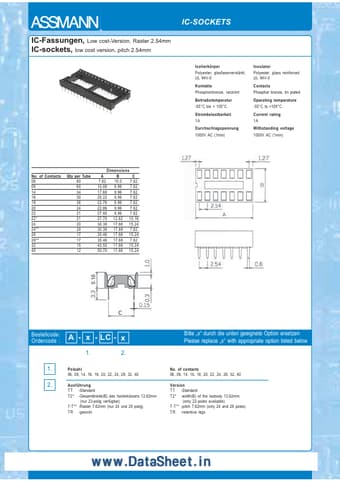

A-32-LC-xx Datasheet Preview — Preview of A-32-LC-xx PDF

Datasheet Details

Part number:

A-32-LC-xx

Manufacturer:

Assmann Electronics

File Size:

84.35 KB

Description:

Ic sockets.
