BML231004 - (BML231002/004) 680-1200 Watts

This page provides the datasheet information for the BML231004, a member of the BML231002 (BML231002/004) 680-1200 Watts family.

Datasheet Summary

Features

- 002.
680 W constant power output High efficiency PFC Hot-swappable Passive load sharing Front access Soft start Over load and over voltage protection Designed for ETSI mechanical structure Controls for remote shut-down size: 2.9” W x 10.4” H x 8.8 “ D Weight: 4.3 kg (9.5 lbs) Over voltage protection Hold-up time Electrical Specs - 204 DataSheet4U. com Input AC input voltage range Frequ.

Astec America

📥 Download Datasheet

Datasheet Details

Part number	BML231004
Manufacturer	Astec America
File Size	616.24 KB
Description	(BML231002/004) 680-1200 Watts
Datasheet	BML231004 Datasheet

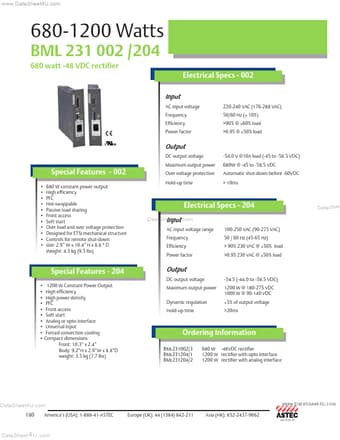

Additional preview pages of the BML231004 datasheet.

📁 Similar Datasheet

BML0603-xxx - Surface Mount Multilayer Ferrite Chip Inductors (Bi technologies)
BML0805-xxx - Surface Mount Multilayer Ferrite Chip Inductors (Bi technologies)
BML1206-xxx - Surface Mount Multilayer Ferrite Chip Inductors (Bi technologies)

Other Datasheets by Astec America

BML231002 - (BML231002/004) 680-1200 Watts

Full PDF Text Transcription

Click to expand full text

www.DataSheet4U.com 680-1200 Watts BML 231 002 /204 680 watt -48 VDC rectifier Electrical Specs - 002 Input AC Input voltage Frequency Efficiency Power factor 220-240 VAC (176-288 VAC) 50/60 Hz (± 10%) >90% @ ≥60% load >0.95 @ ≥50% load Output DC output voltage Maximum output power -54.0 V @10A load (-45 to -58.5 VDC) 680W @ -45 to -58.5 VDC Automatic shut-down before -60VDC > 10ms Special Features - 002 • • • • • • • • • • • 680 W constant power output High efficiency PFC Hot-swappable Passive load sharing Front access Soft start Over load and over voltage protection Designed for ETSI mechanical structure Controls for remote shut-down size: 2.9” W x 10.4” H x 8.8 “ D Weight: 4.3 kg (9.5 lbs) Over voltage protection Hold-up time Electrical Specs - 204 DataSheet4U.
