AS2316F

Secondary Side Housekeeping-Chip

AS2316F Features

* necessary to allow external caps to set the common timing features of PC type power supplies. In addition, negative rails may be sensed without the necessity of a VEE connection, and negative sensing may be disabled without affecting operation of the positive sense section. This IC is available in 1

AS2316F General Description

The AS23xx is a housekeeping circuit for monitoring the outputs of power supplies. It directly senses all the output rails without the need for external dividers and detects undervoltage and overvoltage. It also provides an additional undervoltage comparator which may be configured with any arbitrar.

AS2316F Datasheet (49.38 KB)

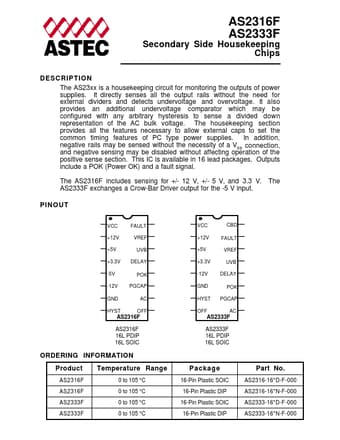

Preview of AS2316F PDF

Datasheet Details

Part number:

AS2316F

Manufacturer:

Astec

File Size:

49.38 KB

Description:

Secondary side housekeeping-chip.
