ATH30 30Amps

30Amps ATH30 Total Power: Input Voltages: No. of Outputs: 143W 3.3V, 5V, 12V Single Electrical Specs Input Input Range 3.0 - 3.6V 4.5 - 5.5V 10.8 - 13.2V Under Voltage Lockout with hysterisis Efficiency up to 94% www.DataSheet4U.com Output Overall Regulation Noise/Ripple Remote sense Transient Response 1% of Vo Typ 40mV Typ (2.5Vo and below) 1% Vo Typ (Vo > 2.5V) Up to 300mV max 100mV typical for 3.3Vo for 50% to 100% IO,MAX step change 70us recovery time (Co = 330uF) 155% IO,MAX typical (au.

ATH30 Features

* Point-of-Load Alliance product Open frame TH or SMT termination Auto-Track™ Sequencing Margin Up/Down Controls Remote sense compensation Output Voltage Adjust (Resistor Programming) Under Vo

ATH30 Datasheet (675.74 KB)

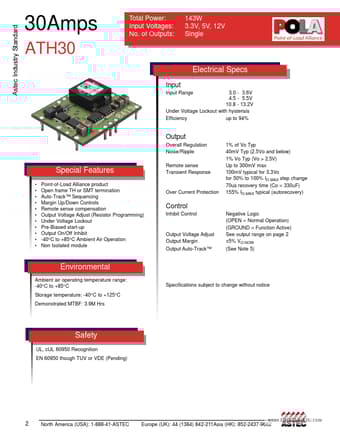

ATH30 Datasheet Preview — Preview of ATH30 PDF

Datasheet Details

Part number:

ATH30

Manufacturer:

Astec

File Size:

675.74 KB

Description:

30amps.
