AR8229 Datasheet - Atheros

Seven-Port Fast Ethernet Switch

AR8229 Features

* Single-chip seven-port Fast Ethernet QoS switch

* Single chip 7 port Fast Ethernet QoS switch controller with: 5 port 10/100 UTP + 2 port GMII/RGMII MAC 4 port 10/100 UTP + 2 port GMII/RGMII MAC + 1 RGMII MAC 4 port 10/100 UTP + 2 port GMII/RGMII MAC + 1 port MII PHY

* QoS support wi

AR8229 General Description

The AR8229/AR8228 is a highly integrated three-Giga MAC plus Five-port Fast Ethernet switch with non-blocking switch fabric, a highperformance lookup unit with 1024 MAC address, 4096 VLAN table, 32 ACL rule table and a four-traffic class Quality of Service (QoS) engine. The AR8229/AR8228 has the fle.

AR8229 Datasheet (1.41 MB)

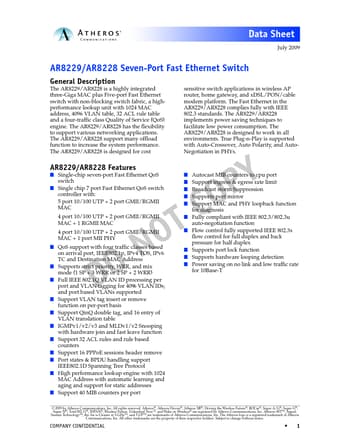

AR8229 Datasheet Preview — Preview of AR8229 PDF

Datasheet Details

Part number:

AR8229

Manufacturer:

Atheros

File Size:

1.41 MB

Description:

Seven-port fast ethernet switch.
