AT25DF161 - 16-Megabit 2.7-volt Minimum SPI Serial Flash Memory

Product Overview

Atmel

Datasheet Details

Part number	AT25DF161
Manufacturer	ATMEL
File Size	1.29 MB
Description	16-Megabit 2.7-volt Minimum SPI Serial Flash Memory
Datasheet	AT25DF161 Datasheet

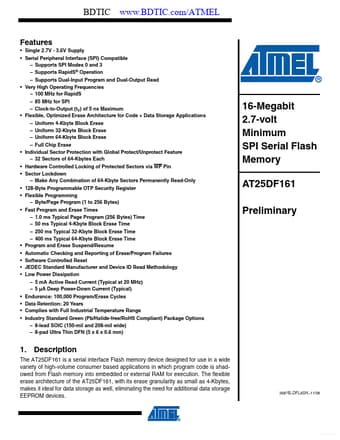

Additional preview pages of the AT25DF161 datasheet.

Product details

Description

The AT25DF161 is a serial interface Flash memory device designed for use in a wide variety of high-volume consumer based applications in which program code is shadowed from Flash memory into embedded or external RAM for execution. DFLASH 11/08 Free Datasheet http://www.0

Features

Single 2.7V - 3.6V Supply.
Serial Peripheral Interface (SPI) Compatible.
Supports SPI Modes 0 and 3.
Supports RapidS® Operation.
Supports Dual-Input Program and Dual-Output Read Very High Operating Frequencies.
100 MHz for RapidS.
85 MHz for SPI.
Clock-to-Output (tV) of 5 ns Maximum Flexible, Optimized Erase Architecture for Code + Data Storage.
