AT49F008A - (AT49F008A / AT49F8192A) 8-megabit (1M x 8 / 512K x 16) Flash Memory

Atmel

📥 Download Datasheet

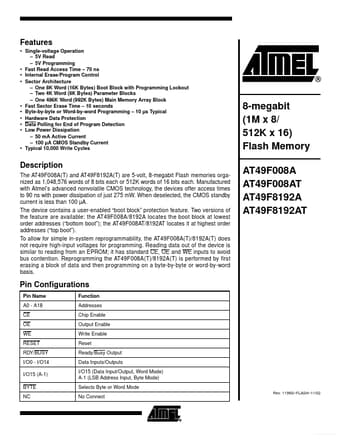

AT49F008A Datasheet Preview — Preview of AT49F008A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	AT49F008A
Manufacturer	Atmel
File Size	195.47 KB
Description	(AT49F008A / AT49F8192A) 8-megabit (1M x 8 / 512K x 16) Flash Memory
Datasheet	AT49F008A-Atmel.pdf

AT49F008A Product details

Description

The AT49F008A(T) and AT49F8192A(T) are 5-volt, 8-megabit Flash memories organized as 1,048,576 words of 8 bits each or 512K words of 16 bits each.

Features

Single-voltage Operation.
5V Read.
5V Programming Fast Read Access Time.
70 ns Internal Erase/Program Control Sector Architecture.
One 8K Word (16K Bytes) Boot Block with Programming Lockout.
Two 4K Word (8K Bytes) Parameter Blocks.
One 496K Word (992K Bytes) Main Memory Array Block Fast Sector Erase Time.
10 seconds Byte-by-byte or Word-by-word Programming.
10 µs Typical Hardware Data.
