ATSAME70N20A, ATSAME70Q21A SMART ARM-based Flash MCU

ATSAME70N20A Description

SAM E70 Atmel | SMART ARM-based Flash MCU DATASHEET .
The Atmel® | SMART SAM E70 devices are members of a family of Flash microcontrollers based on the high-performance 32-bit ARM® Cortex®-M7 processor wi.

ATSAME70N20A Features

* Core ̶ ARM Cortex-M7 running at up to 300 MHz(1) ̶ 16 Kbytes of ICache and 16 Kbytes of DCache with Error Code Correction (ECC) ̶ Simple- and double-precision HW Floating Point Unit (FPU) ̶ Memory Protection Unit (MPU) with 16 zones ̶ DSP Instructions, Thumb®-2 Instruction Set ̶ Embedded Trace

ATSAME70N20A Applications

* including consumer, industrial control, and PC peripherals. SAM E70 devices operate from 1.7V to 3.6V and are available in the following packages: ̶ 144-pin LQFP ̶ 144-ball LFBGA ̶ 100-pin LQFP ̶ 100-ball TFBGA ̶ 64-pin LQFP The SAM E70 devices are pin-to-pin compatible with the SAM4E (100-pin and 1

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ATSAME70N20A, ATSAME70Q21A. Please refer to the document for exact specifications by model.

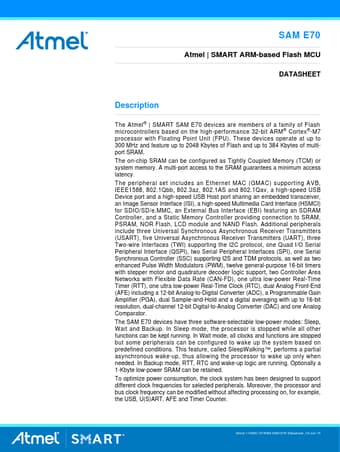

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ATSAME70N20A, ATSAME70Q21A
Manufacturer
Atmel
File Size
7.94 MB
Datasheet
ATSAME70Q21A-Atmel.pdf
Description
SMART ARM-based Flash MCU
Note
This datasheet PDF includes multiple part numbers: ATSAME70N20A, ATSAME70Q21A.
Please refer to the document for exact specifications by model.
