Download the ATmega88PB datasheet PDF.
This datasheet also covers the ATmega48PB variant, as both devices belong to the same avr 8-bit microcontroller family and are provided as variant models within a single manufacturer datasheet.
General Description
2.1.1 VCC Digital supply voltage.
2.1.2 GND Ground.
Port B is an 8-bit bi-directional I/O port with internal pull-up resistors (selected for each bit).
Key Features
High Performance, Low Power Atmel®AVR® 8-Bit Microcontroller Family.
Most Single Clock Cycle Execution ̶ 32 x 8 General Purpose Working Registers ̶ Fully Static Operation ̶ Up to 20 MIPS Throughput at 20MHz ̶ On-chip 2-cycle Multiplier.
High Endurance Non-volatile Memory Segments ̶ 4/8/16KBytes of In-System Self-Programmable Flash program memory ̶ 256/512/512Bytes EEPROM ̶ 512/1K/1KBytes Internal SRAM ̶ Write/Erase.
Full PDF Text Transcription for ATmega88PB (Reference)
Note: Below is a high-fidelity text extraction (approx. 800 characters) for
ATmega88PB. For precise diagrams, and layout, please refer to the original PDF.

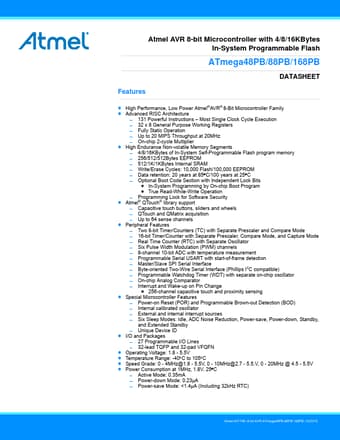

Atmel AVR 8-bit Microcontroller with 4/8/16KBytes In-System Programmable Flash ATmega48PB/88PB/168PB DATASHEET Features High Performance, Low Power Atmel®AVR® 8-Bit Mic...
View more extracted text
DATASHEET Features High Performance, Low Power Atmel®AVR® 8-Bit Microcontroller Family Advanced RISC Architecture ̶ 131 Powerful Instructions – Most Single Clock Cycle Execution ̶ 32 x 8 General Purpose Working Registers ̶ Fully Static Operation ̶ Up to 20 MIPS Throughput at 20MHz ̶ On-chip 2-cycle Multiplier High Endurance Non-volatile Memory Segments ̶ 4/8/16KBytes of In-System Self-Programmable Flash program memory ̶ 256/512/512Bytes EEPROM ̶ 512/1K/1KBytes Internal SRAM ̶ Write/Erase Cycles: 10,000 Flash/100,000 EEPROM ̶ Data retention: 20 years at 85C/100 years at 25C ̶ Optional Boot Code Section with Indepen
ATmega88PB Datasheet
